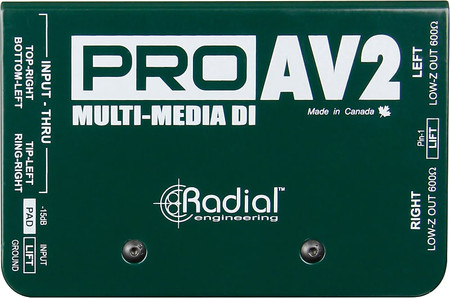

Radial ProAV2 Passive DI for AV, 2-Channels with RCA, 3.5mm and XLR Inputs
Stereo Passive Multimedia Direct Box
The ProAV2 is a stereo passive direct box designed for audio-video integrators and technicians, with an array of input connector options to easily interface with a wide range of audio equipment.
- Versatile stereo direct box for multimedia applications
- Easy to use, ultra-quiet passive design
- Transformer isolation eliminates hum and buzz
- Handles huge transients without distortion
Connect any device to the PA system
The ProAV2 is an indispensable device for live sound engineers and audio-video technicians alike, with the ability to seamlessly interface nearly any device with a pro audio system. A 3.5mm stereo input jack and dual 1/4" and RCA connectors ensure that you won't ever be hunting around for adaptor cables, while ultra-quiet performance with transformer isolation helps eliminate hum and buzz from ground loops. The ProAV2 maintains stereo separation and exhibits linear frequency response from 20Hz to 20kHz, with balanced mic-level XLR outputs that allow you to send signals through a multichannel audio snake on stage or into two channels of a mixing console.
The Radial ProAV2 is a passive direct box designed to handle the extreme dynamics and frequency range that is now common with digital sources. Linear across the audio range, it exhibits low distortion at all frequencies, amazing signal handling and very little phase shift. The result is a clean, natural sounding rendition that is both noise-free and dependable.
Specifications
- Audio circuit type: Passive, transformer based
- Transformer: Eclipse ET-DB2, 12:1 ratio
- Number of channels: Dual channel (stereo)
- Frequency response: 20Hz ~ 18.5KHz (± 0.2dB)
- Dynamic range: 128dB
- Total harmonic distortion: 0.01% from 20Hz~20kHz @-10dB
- Phase Deviation: 1° @ 100Hz; 8° @ 20Hz
- Input Impedance: 140k Ohms, unbalanced
- Output Impedance: 150 Ohms, balanced
- Maximum Input: +18dB @ 20Hz
Features
- Ground lift
- Input Connectors: 1/4", RCA, 3.5mm TRS
- Output Connectors: XLR
General
- Construction: 14-gauge steel chassis & shell
- Size (L x W x D): 3.25” x 5” x 1.875”
- Weight: 0.82kg / (1.8lbs)
- Shipping size (L x W x D): 102 x 76 x 165mm (4.00" x 3.00" x 6.50")
- Shipping weight: 1.2 kg (2.60 lbs)
- Power: Passive, no power required
- Conditions: For use in dry locations only between 5°C and 40°C
- Warranty: Radial 3-year, transferable
ProAV2 Applications
ProAV2: Stereo In ~ Stereo Out
The ProAV2 operates in true stereo (dual mono) making it ideal for stereo devices like laptops and DVD players. Just like the ProAV1 you can connect with phone, RCA and 3.5mm jacks, quick and adapter-free.
